产品详情

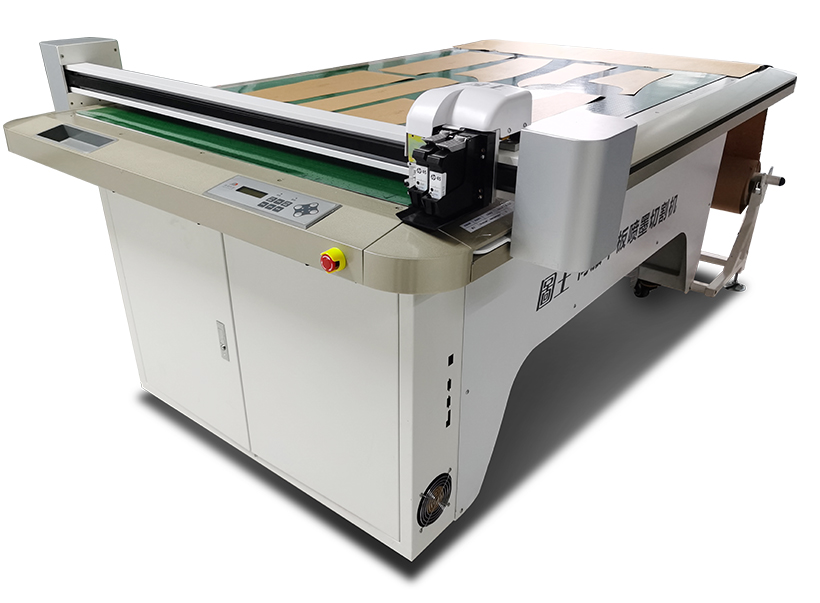

圖王伺服平板喷墨切割机
产品详情


适用行业:

适用于服装、箱包等行业,可连接CAD软件

技术参数:

型号Model

TW-1590SPF

TW-1512SPF

TW-2512SPF ORDER MADE (定制款)

最大切割尺寸(LxW)Max ctting(LXW)

1500X 900mm

1500X 1200mm

2500X 1200mm

墨盒Ink cartridge

HP45/HP88墨盒HP45/HP8ink cartridge

驱动方式Drive mode

交流伺服系统Servo motor

切割速度Cutting speed

1200mm/S

打印速度Print speed

45- 120m/h,300 600DPI

切割厚度Cutting thick

Print: 45-500g/mCutting 45-500g/m (More than500gram order made)

打印介质Print media

牛皮纸、胶片膜、红硬板纸、白纸板、纤维硬纸板等

Kraft paper, photo film .red cardboard ,white cardboard fiber cardboard.

9100KB

缓存Buffer capacity

9100KB

裁切刀片Cutting tools

定制金刚刀片

Custom diamond blade


兼容软件Software

HP-GL/DXF、主流服装CAD格式

Garment CADfile


输入接口input connect

(TCP协议),串口连接,U盘存读

Network ,serial,U disk


材质固定方式Material fixed

高压真空吸附,泵功率1.5KW

High pressure vacuum adsorption, pump power 1.5KW

泵功率PumpPump 4.OKW

装置系统Loading system

后置式-体单卷/双卷(可选)装置架构

Back side loading singly oller /double oller optional


电源、功率Power /capacity

110/220V土10% 50/60Hz/2KW

380V/4.5KW

工作环境Environmental requirement

温度1°C-350C 湿度RH15-85% (无凝水)

Temperature 19C-359C Humidity RH15-85% (without condensation)

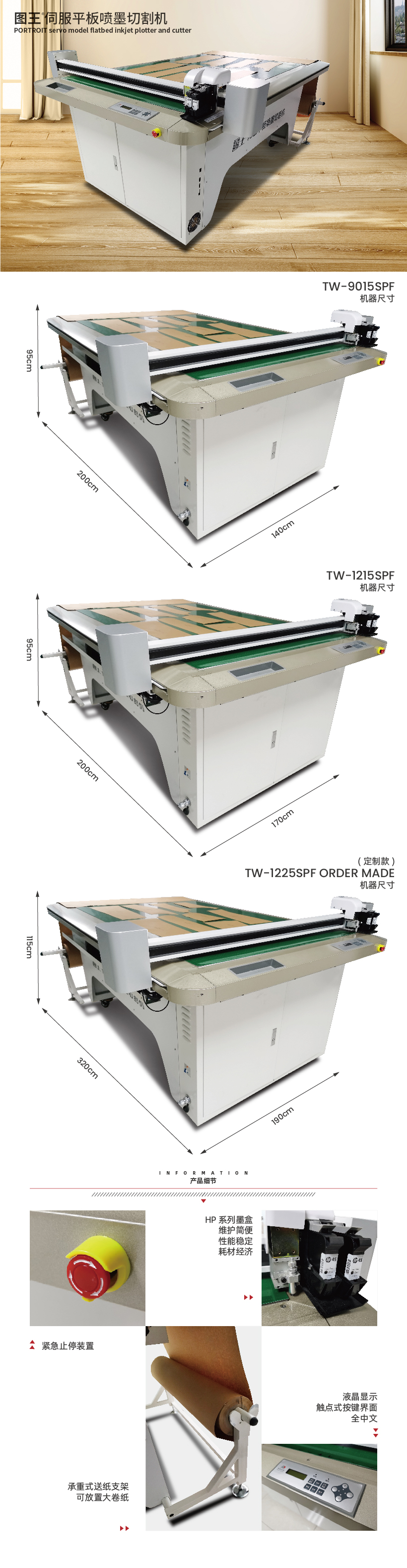

机器尺寸(LXWXH) Machine side (LXWXH)

2000X 1400X 950mm

2000X 1700X950mm

3200X1900X 1150mm

外包装尺寸(LXWXH)Packing size(LXWxH)

2100X1500X 1150mm

2100X1800X 1150mm

3300X2000X 1250mm

智能保护

Intelligent alarm

超宽报警,超长报警,过载报警

Over-width alarm, Over length alarm, overload alarm
